No Frame Screen LCD Video Wall 55'' 3.5mm Narrow Bezel TFT Type For
Displaying
Quick details
Panel size: 55inch
Panel brand: LG
Aspect ratio: 16:09
Contrast ratio: 4500:1
Resolution: 1920*1080
Brightness: 500nits
Display area: 1209.6*680.4mm
Pixel pitch: 0.63*0.63

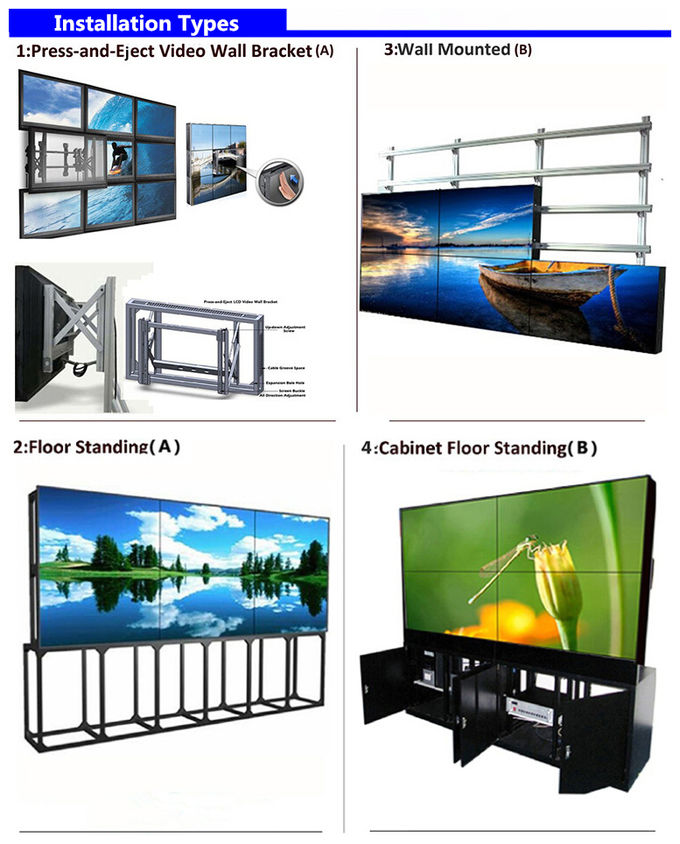

Installation: wall mount/ cabinet/ floor standing/ embedded
Interface: HDMI, DVI, VGA, CVBS, Cable, USB, Switch, Power Supply
Feature
1. HD video wall unit: high brightness, contrast and gamut.
2. Resolution: 1920×1080; Color: 16.7M; Brightness: 500cd/m2;
3. 178 degree wide viewing angle, the full range of display
4. Panel life: above 60000 hours; Certificate: FCC, CE, RoHS;
Warranty: 1 year;
5. With 100% original Korean panel ensures the quality of panel.
Application
Business Organizations: Supermarket, large-scale shopping malls,
exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy.
Financial Organizations: Banks, negotiable securities, funds,
insurance companies, pawnshops;
Non-profit Organizations: Telecommunications, post offices,
hospital, schools;
Public Places: Airports, stations, gas stations, toll stations,
bookstores, exhibition halls, stadiums, museums, convention
centers, ticket agencies, HR market, lottery centers;
Real Estate Property: Apartments, offices, commercial buildings,
model rooms, property brokers;
Entertainments: Movie theaters, fitness halls, clubs, massage
rooms, bars, cafes, beauty shops, golf course.
Specification
| Specification |
| Size | 55 inch |
| Panel brand | LG |
| Model No. | HBY-PJ550P |
| Panel Size | 55" IPS LCD module |
| Backlight Type | LED |
| Display Area | 1206.9(H)x608.4(v)mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920X1080 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 500cd/m2,700cd/m2 |
| Contrast | 4500:1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | 8 ms |
| Life Span | >60,000 hours |
| Bezel width(between screens) | 3.5mm |
| Product Weight | 30KG |
| Interfaces (option 1- without 4K input) |
| Input | 1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45) |
| Output | 2*RS232(RJ45),2*BNC (PAL/NTSC) |
| Interfaces (option 2- With 4K input) |
| Input | 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA /
WXGA),2*RS232(RJ45) |
| Output | 1* DP (Display port),2*RS232(RJ45) |
| Power |
| Power Supply | AC100V~240V 50/60Hz |
| Maximum Power Consumption | 220W |
| Standby Power Consumption | <1W |
| Working Environment |
| Working Temperature | 0℃~50℃ |
| Working Humidity | 10%-90%RH |
