Brand Name : | HBONY |
Model Number : | HBY-PJ460P-2 |
Certification : | CE ,CCC, FCC , ROHS, ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
Supply Ability : | 3000 Pieces per Week |
Delivery Time : | 5-8 working days |

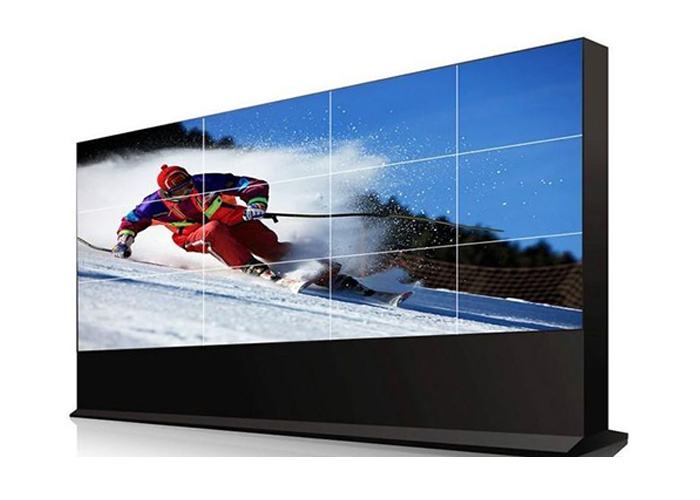

HBONY 46inch 1.7mm bezel LCD Video Wall used for Education and
Conference System
LCD Video Wall's Feature:
1. Large screen,low power consumption
2. Ultra Narrow Bezel 1.7mm
4. With HDMI/VGA/DVI input
5. Available dimension:46",47",49",55"
6. Free combine display screen.
7. Viewing angle:178°/178°
Specification
LCD Specification | |
Model: | HBY-PJ460P-2 |
LCD Size: | 46Inches |
Display Resolution: | 1920*1080 |
Aspect Ratio: | 16:9 |
Brightness: | 500 cd/m2 |
Narrow bezel : | 1.7mm |
Display Area: | 1018.08(W)*572.67(H) |
Backlight Type: | LED |
Contrast: | 4000:1 |
Color: | 16.7M |
Response Time: | 6ms |
Life Cycle: | ≥50,000 hours |
Viewing Angle: | 178°/ 178° |
Function | |
Color System: | PAL/NTSC/SECAM |
Menu Language: | Chinese, English, multi-language menu |
Operating Mode : | The remote, function key |
I/O Port | |
D-15 pin RGB input(VGA): | 1 |
DVI input : | 1 |
HDMI input : | 1 |
BNC input : | 2 |
RS232 input: | 1 |
BNC output: | 2 |
RS232 output: | 1 |
Power | |
Power Input: | AC100-240V,50 /60HZ |
Power Consumption : | 220W |
Standby Consumption : | 0.5W |
Working Enviroment | |
Working Temperature | 0°C~40°C |
Working Humidity: | 10%~80% |
Storage Temperature: | -20°C~60°C |
Storage Humidity: | 10%~90% |
Others | |
Net Weight: | 26Kg |
Housing: | Metal |
Color: | Black |
Installation Method: | Wall-Mount / Floor stand |
Certificates: | ISO9001, 3C, FCC , ROHS etc |
Applications of LCD Video Wall
♦ Commercial Industry
LCD video wall could be used in the display terminal of commercial industry, such as advertising, media, product presentations etc. The LCD video wall could meet the high requirement for bright images and vivid videos because of its high definition and high brightness. At the same time, the LCD video wall could work around the clock for years without break, which makes it the best choice for commercial industry to display information with intermission.
♦ Transportation Industry
LCD video wall could be used in the information display terminal of transportation industry, such as airports, ports, metro, highway. Because more information could be displayed integrated and timely in the LCD display.
♦ Management and Control System
LCD video wall could be used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub etc. The management and control system features that a wide monitoring range must be displayed to the control center so that the manager could make a quick response. In this case, the independent displays of each screen in LCD video wall makes a great difference for the manager in the management and control center.
![]() |
