55 inch Large Screen Video Wall with LED Bcaklit for Safety
Monitoring Industry
Brief info
The 55-inch LG high-brightness (3.5MM) ultra-narrow-edge LCD
splicing unit adopts Korean LG industrial IPS LCD screen, adopts
the most advanced dense LED light source backlight system, which
has good color restoration, vivid image, dot-like ultra-dense
distribution, uniform backlight brightness, unique intelligent
color correction technology, making the color more bright and
natural, bright field, energy saving, ultra-high light efficiency,
dark field without leakage. High contrast 6ms response speed,
smoother image. With energy saving, environmental protection, no
radiation, long life, long-term use of uniform brightness,
backlight using glass-free materials, safe transportation, panel
shell material is strong, not easy to damage. The LCD unit adopts
the most advanced backlight technology at present, which greatly
improves the overall display effect of the splicing unit and has
outstanding technical characteristics.
Applications:

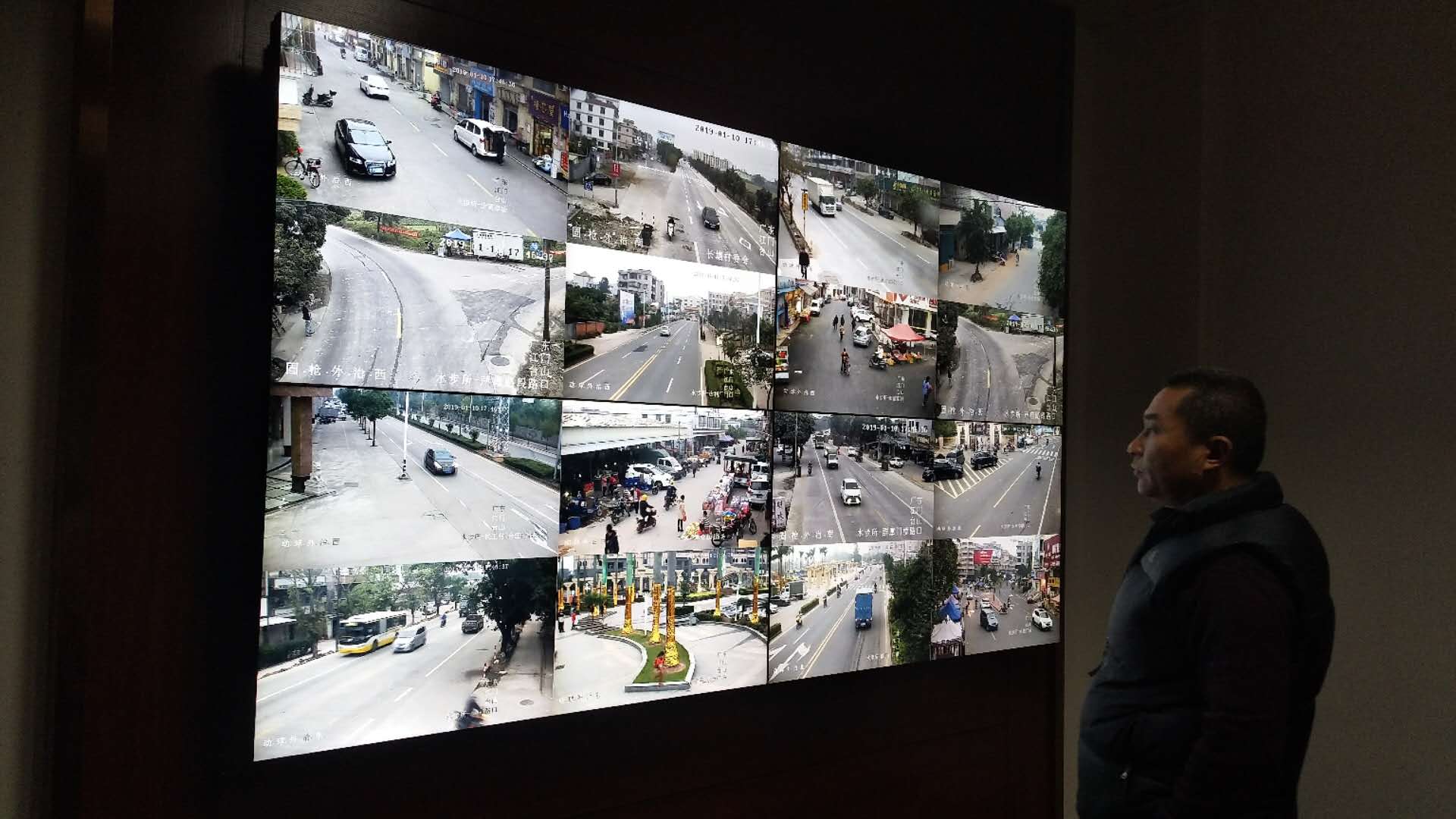

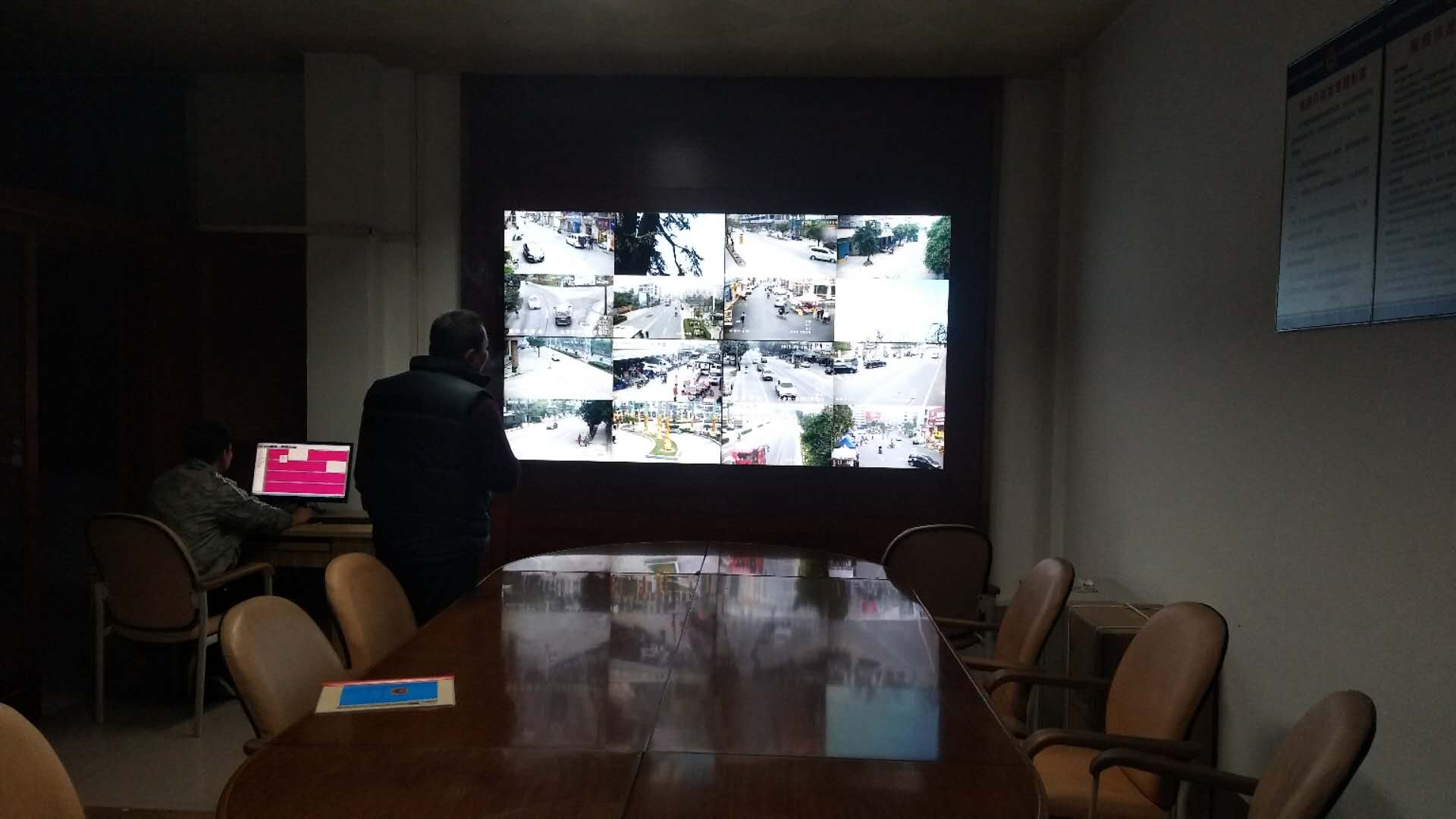

Video surveillance, telecommunications, public utilities, process
processing, traffic control, security surveillance and national
defense, stage entertainment, television studio, stock securities,
large-scale exhibitions, shopping malls, banks, office halls,
company greeting screen, exclusive stores, dispatching command and
so on.
Functional features:
1. Using the world's top IPS hard screen, is the most accurate
display of color restoration.
2. 1920*1080 (full HD resolution) is the best tool for advertising
display. It is made of three-star panel.
3. IPS hard screen, 16.7 million different colors, can be called
expert-level color, showing real images.
4. Pictures can only be spliced, single-screen, multi-screen,
full-screen intelligent splicing, a variety of options.
5. The picture can be put on the splicing screen through mobile
phones, tablets and other mobile devices.
6. In the analog HD monitoring system, IPS denoising technology
upgrades the traditional 2D technology to 3D technology. On the
basis of the original intra-frame denoising, it adds the function
of denoising between frames. The analog HD ISP has greatly improved
the functions of image and wide dynamic, which makes the light and
dark parts of the image clearer and closer to the actual
observation effect of human beings.
7. 178 degrees wide angle of view can also be seen clearly
obliquely.
8. Military grade products have a long service life of more than
50,000 hours. High-definition painting quality, no radiation, no
eye damage, green environmental protection.
| Specification |
| Size | 55 inch |
| Panel brand | LG |
| Model No. | HBY-PJ550P |
| Panel Size | 55" IPS LCD module |
| Backlight Type | LED |
| Display Area | 1206.9(H)x608.4(v)mm |
| Aspect Ratio | 16:9 |
| Resolution | 1920X1080 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 500cd/m2,700cd/m2 |
| Contrast | 4500:1 |
| Visual Angle (H/V) | 178°/178° |
| Response Time | 8 ms |
| Life Span | >60,000 hours |
| Bezel width(between screens) | 3.5mm |
| Product Weight | 30KG |
| Interfaces (option 1- without 4K input) |
| Input | 1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45) |
| Output | 2*RS232(RJ45),2*BNC (PAL/NTSC) |
| Interfaces (option 2- With 4K input) |
| Input | 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA /
WXGA),2*RS232(RJ45) |
| Output | 1* DP (Display port),2*RS232(RJ45) |
| Power |
| Power Supply | AC100V~240V 50/60Hz |
| Maximum Power Consumption | 220W |
| Standby Power Consumption | <1W |
| Working Environment |
| Working Temperature | 0℃~50℃ |
| Working Humidity | 10%-90%RH |
