HBYLCD Display windows IR Touch Screen Digital Signage used in
enterprise , cinema , hotel
Digital signage is widely used in enterprise , cinema , hotel ,
restaurant , shopping mall , school , hospital and other places ;

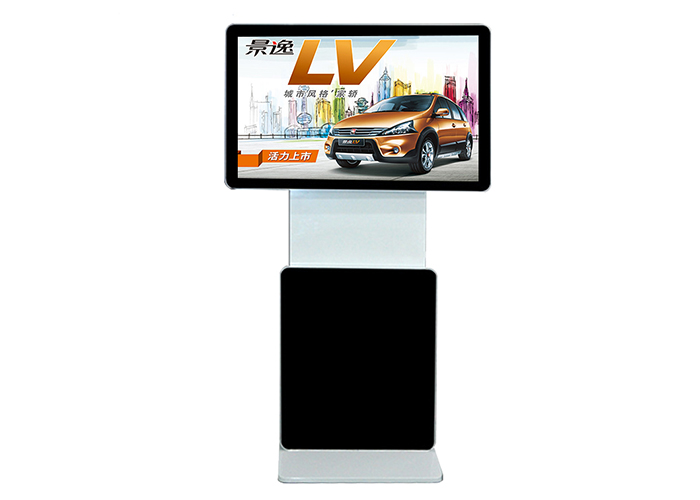

Features of Floor Standing LCD Advertising Players
♦ Industrial level design, support 24/7 working
♦ Touchscreen Detection Software supports full screen detection
♦ Excellent design with High Definition LCD screen aluminum triangle
base; aluminum alloy frame original tempered glass surface
♦ Support key operation and IR remote control
♦ Support network, wifi, 3G, 4G
♦ WLAN & LAN long-distance setting play / sleep / reboot
etc..function supported
How to choose right advertisement display ?
1: Play pictures and video cyclically , no need to change playing
content frequently .
Suggestion: Single board advertisement display .
2: Control many displays remotely , need to change playing content
frequently , download APP.
Suggestion: Android advertisement display .
3: With interactive function
Suggestion: Android / windows advertisement display with touch
screen ;
Features :
1: Rounded or rectangular frame
2: With / without front tempered glass or acrylic panel
3: Metal frame / aluminum frame
4: Open frame / closed frame
Optional Configuration :
High Brightness , Touch , Gravity Sensor , Motion Sensor , Camera ,
Hard Disk , 3G ,
GPS , Bluetooth , Wifi , Printer , Scanner
| Specification |
| Model No. | HBY-W470 |
| Panel size | 47″ TFT-LCD |
| Display area(mm)/mode | 1039.68*584.82mm |
| Maximum resolution | 1920*1080 |
| Display color | 16.7M |
| Pixel Pitch(mm) | 0.5415*0.5415mm |
| Brightness (nits) | 450 cd/m2 |
| Contrast | 3000:1 |
| Visual angle | 89/89/89/89 |
| Response time | 5ms |
| Life(hrs) | >60,000(hrs) |
| Input and output |
| RJ45 | Included(Network version only) |
| 3G / WIFI Module | Included(Network version only) |
| USB | 1 ( USB2.0 interface) |
| SD | 1 (Compatible MMC/MS) |
| CF | 1(optional) |
| L/R audio input | 1 (RCA*2) |
| L/R audio output | 1 (RCA*2) |
| Speaker | 2×5W(9Ω) |
| Video |
| Color system | PAL/NTSC/SECAM |
| Remote controller | IR Remote Controller |
| OSD display( screen menu display) |
| Menu language | Chinese/English( Multiple Language Supported) |
| Power |
| Power supply | AC100~240V 50 /60 HZ |
| Maximum power consumption | <=280W |
| Standby power consumption | <1W |
| Temperature |
| Working temperature | 0°C~50°C |
| Storage temperature | -20°C~60°C |
| Working humidity | 20%~85% |
| Storage humidity | 10%~90% |
| Appearance |
| Color/appearance | White,black,customized |
| Body Dimension | 1993*657*127.4mm |
| After packing size | 2143*807*328mm |
| Case | Metal case SPCC |
| Installation | Floor-standing |
| Gross Weight | 108kg |
| Quality Standard | ISO9001,CCC |
| Detailed functions |
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI |
| Audio format | Wave/MP3/WMA/AAC |
| Image format | JPEG/BMP/TIFF/PNG/GIF |
| Image resolution | 480P/720P/1080P |
Applications of Floor Standing LCD Advertising Players
♦ Public information– news, weather, traffic and local (location specific) information,
such as building directory with map, fire exits and traveler
information.
♦ Internal information- corporate messages, such as health & safety items, news, and so
forth.
♦ Menu information– pricing, photos, ingredients, and other information about the
food(s) being offered, including nutritional facts.
♦ Advertising Displays – usually either related to the location of the sign or using the
audience reach of the screens for general advertising.
